Green LED blinking Status of Power Supply Board 03‐4733 REV H and newer
- Remove the access panel of the generator

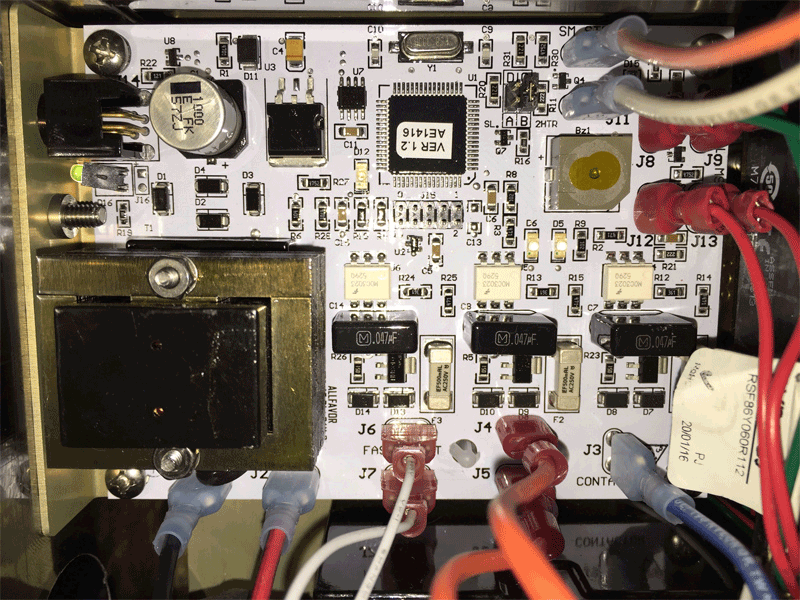

- Locate the PC Board and Green LED

LED Status
Solid Green Light - Generator has power but not connected to a control

Short Blink once every 10 seconds - Normal, System is OK

Constant Blinking - System in active PowerFlush
Room Over Temperature Error - 1 blink followed by 5 seconds of solid light
No or Low Water Error - 2 blinks followed by 5 seconds of solid light
Stuck button on control Error - 3 blinks followed by 5 seconds of solid light
Low AC Voltage Error - 4 blinks followed by 5 seconds of solid light
High AC Voltage Error - 5 blinks followed by 5 seconds of solid light
TTMPH Error - 6 blinks followed by 5 seconds of solid light
TTMPL Error - 7 blinks followed by 5 seconds of solid light
CANER Error - 8 blinks followed by 5 seconds of solid light
